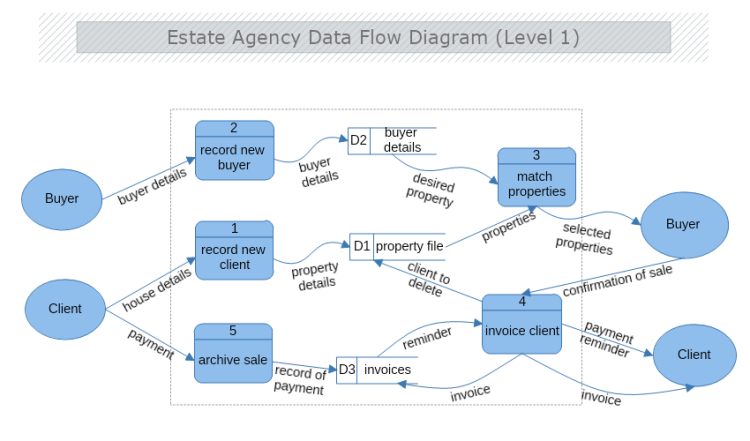

This is a Data Flow Diagram Level 1 of an Estate Agency. The example illustrates the main processes within the system, where the data gets stored, how are the external entities connected to the system, via which processes, and how is the information is being transform from one form to another along the system. This template is suitable for any provider offering intermediary services between a seller and a buyer.
|
